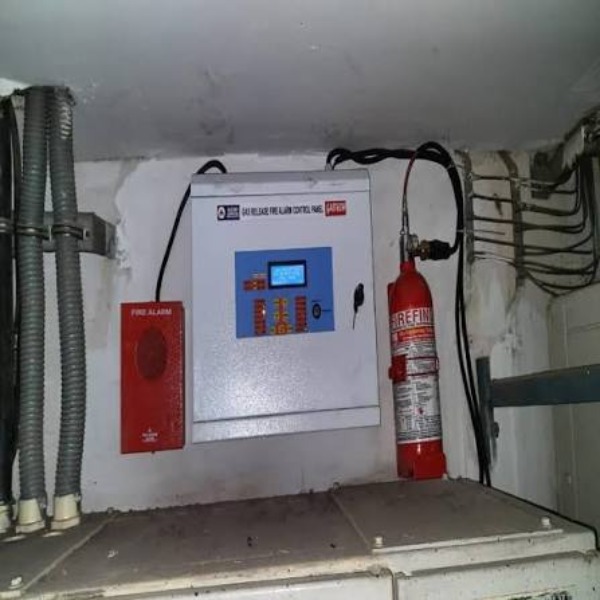

The Electrical Equipment Protection System using CO₂ (Carbon Dioxide) is a specialized fire suppression system designed to protect electrical installations and equipment against fire hazards. The system uses carbon dioxide as a clean, electrically non-conductive extinguishing agent that suppresses fire primarily by reducing the oxygen concentration around the combustion zone. It is suitable for protecting electrical control panels, switchgear rooms, transformers, generator enclosures, server rooms, cable galleries, and other critical electrical equipment. The system typically consists of CO₂ storage cylinders, a cylinder valve assembly, discharge piping, nozzles, detection devices, and an automatic control panel. In the event of a fire, the detection system identifies the fire condition and activates the CO₂ release mechanism, discharging the agent through strategically positioned nozzles to suppress the fire rapidly. As CO₂ leaves no residue, it helps minimize contamination and cleanup of protected equipment. System design must consider enclosure volume, ventilation, agent concentration, discharge time, and applicable fire safety standards. Since CO₂ can create an oxygen-deficient atmosphere and pose a serious risk to human life, appropriate alarms, time delays, evacuation procedures, and safety interlocks must be incorporated wherever required, particularly in normally occupied areas.
