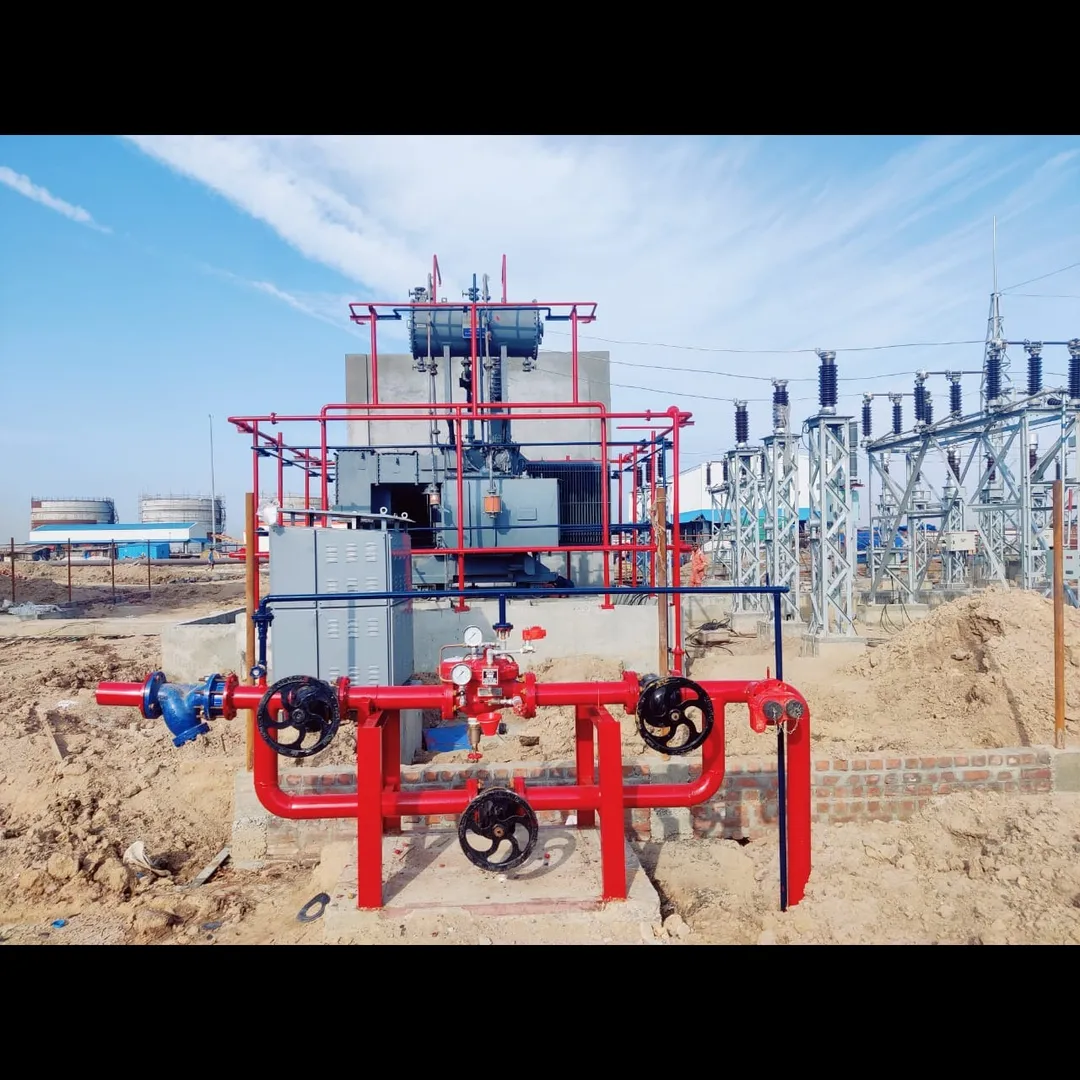

High Velocity Water Spray System:
A Reliable Fire Protection Solution by ASHA ENTERPRISE
📘 Overview:
The High Velocity Water Spray System (HVWS) is a fixed fire protection setup designed to rapidly suppress fires involving flammable liquids and electrical components. Engineered and installed by ASHA ENTERPRISE, this system is ideal for safeguarding power generation units, oil-handling areas, and other critical installations. The system delivers water at high speed through specialized nozzles to cool hot surfaces, control vapor release, and contain fires effectively.
🛠️ Key Components:
Water Source and Distribution:
Dedicated fire pumps (electric or diesel-driven)
Storage tanks or reservoirs for emergency water supply
A robust network of pipes designed for high-pressure flow
Control Valves and Actuation:
Deluge or remote-controlled valves regulate water flow
System activation via manual release or automatic detection
Valves are fitted with test connections, pressure indicators, and drain ports
Detection Mechanism:
Heat-sensitive cables or temperature-based detectors
Optional flame or smoke sensors for early warning
System activates automatically when a fire is detected
Spray Nozzles:
Custom-designed nozzles produce high-speed water jets
Strategically placed for maximum surface coverage
Materials: corrosion-resistant metals (e.g., brass, stainless steel)
Piping Infrastructure:
High-strength steel or galvanized pipelines
Designed to resist pressure fluctuations and environmental wear
⚙️ How the System Works:
Once the detection system identifies a fire or sudden rise in temperature, the control valves release water into the pipe network. High-pressure water flows through the spray nozzles, creating a dense, fast-moving mist. This spray rapidly cools surfaces, suppresses flames, and helps control the spread of flammable vapors.
The system can also be triggered manually in case of emergencies.
🏭 Suitable for the Following Applications:
Electrical transformer areas
Generator and turbine enclosures
Cable trenches and electrical galleries
Lubrication oil systems and fuel pump rooms
Oil and chemical storage zones
✅ Why Choose ASHA ENTERPRISE’s HVWS System?
Fast Fire Knockdown: Designed to act within seconds of fire detection
Thermal Protection: Reduces surface temperatures and vapor formation
Built to Last: Strong materials and precision manufacturing
Tailored Designs: Customized layouts for each site
Standard Compliant: Designed in line with NFPA 15, IS 15325, and other relevant standards
🔧 Our Services Include:
Site assessment and risk analysis
Complete system design and engineering
Material supply, installation, and commissioning
Testing, training, and maintenance
Modernization of existing fire protection systems
