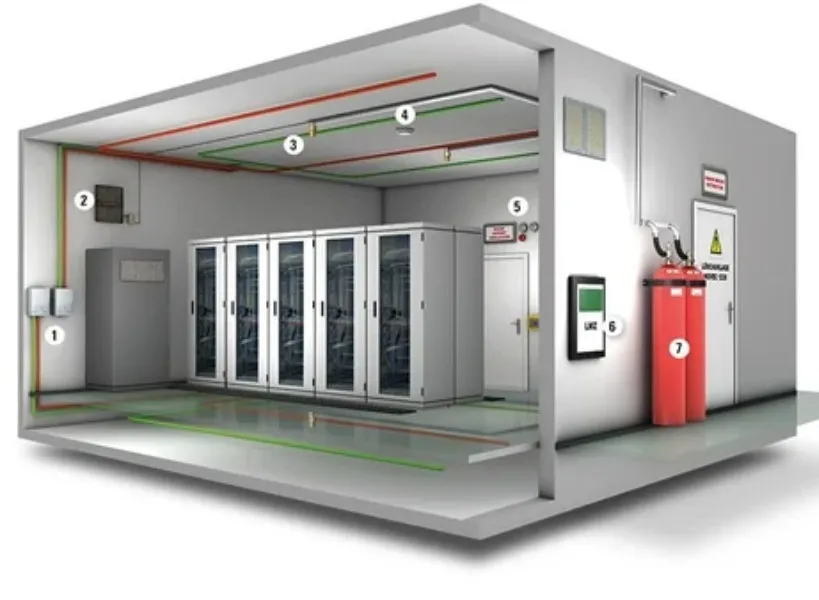

A 'Clean Agent Fire Suppression/Flooding System' for a server room is an automatic fire protection system designed to detect and extinguish fires rapidly without causing damage to sensitive electronic equipment. The system consists of highly sensitive smoke detectors, a fire alarm control panel, agent storage cylinders, discharge piping, and specially designed nozzles installed throughout the protected area. Upon detection of a fire, the system initiates audible and visual warning alarms and, after a preset time delay for personnel evacuation, releases a clean extinguishing agent uniformly throughout the room to achieve the required flooding concentration. The clean agent suppresses the fire by interrupting the combustion process and/or absorbing heat while leaving no residue, minimizing downtime and eliminating the need for post-discharge cleanup. The system is designed in accordance with applicable standards such as NFPA 2001 and is suitable for protecting critical facilities including data centers, server rooms, telecommunications equipment rooms, and other areas containing valuable electronic assets. The protected enclosure is required to maintain agent concentration for the specified hold time through proper room integrity, ensuring effective fire extinguishment and prevention of re-ignition.
