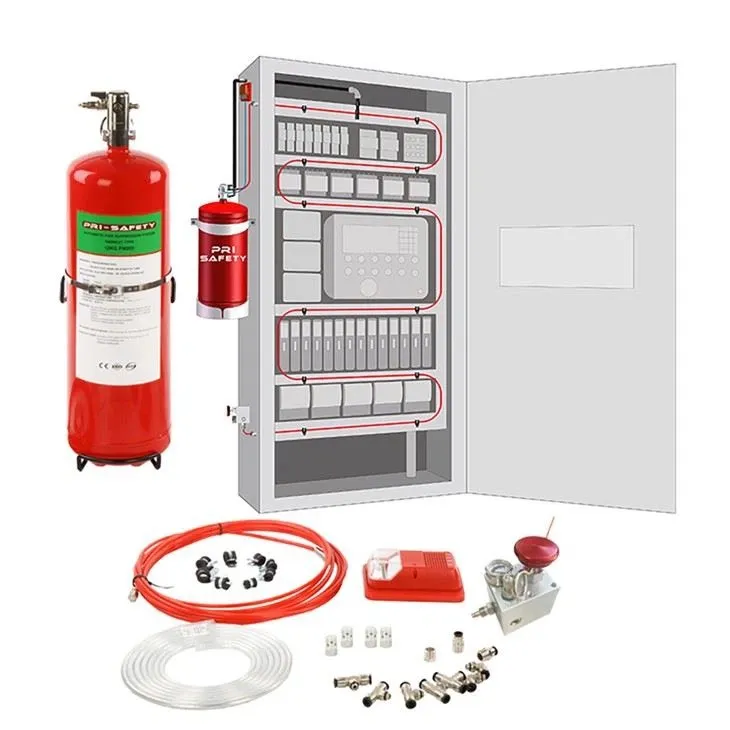

An HFC (hydrofluorocarbon) fire suppression system is a clean agent extinguishing system designed to rapidly suppress fires without leaving residue or causing damage to sensitive equipment. The system typically uses agents such as HFC-227ea (FM-200) or HFC-125, which are stored as liquefied compressed gases in high-pressure cylinders. Upon detection of a fire through automatic detection devices—such as smoke, heat, or flame detectors—the control panel initiates the release sequence, opening electrically or pneumatically actuated valves. The HFC agent is discharged through a network of piping and specially designed nozzles, rapidly dispersing into the protected enclosure as a gas. The extinguishing mechanism primarily involves heat absorption and interruption of the combustion process at the molecular level, effectively reducing the flame temperature below the level required to sustain combustion. These systems are electrically non-conductive, safe for use in occupied spaces within design concentration limits, and environmentally acceptable compared to legacy agents like Halon 1301, though they have some global warming potential. HFC fire suppression systems are widely used in data centers, control rooms, telecommunications facilities, and other areas where water-based suppression would be unsuitable, offering fast, reliable, and residue-free fire protection.
